Detekt Design.
Team: Anton Ruckman, Sam Ocharoenchai and James Hadley.

Concept one looks at developing a mechanism and possible adjustment system that integrates into the standard qwerty style keyboard we all know and use.
Using the standard keyboard style enables the design to be both familiar to the user and looking ahead, provides an opportunity to make use of existing keyboard manufacturing processes.

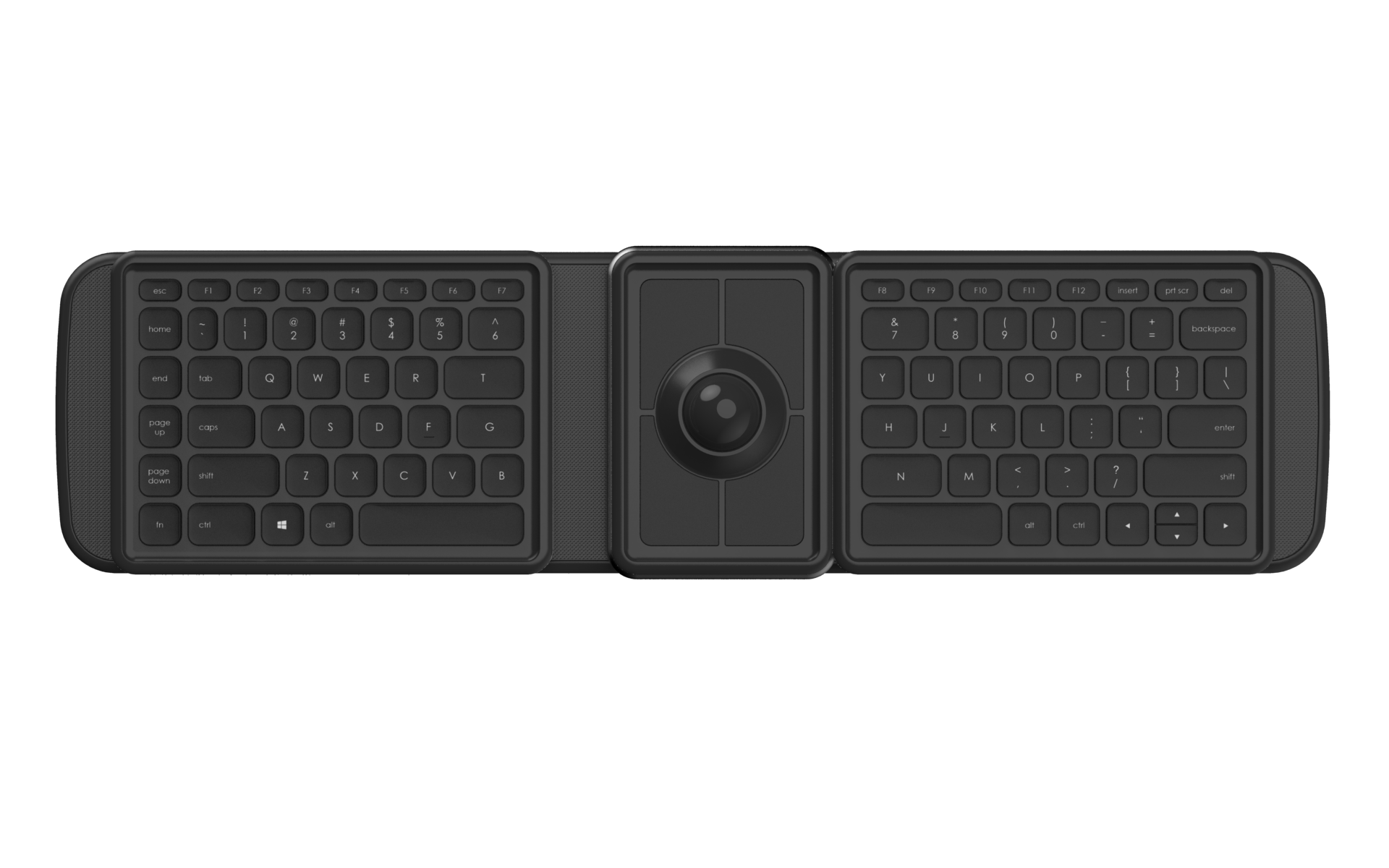

One piece adjustable keyboard with connected trackball option.

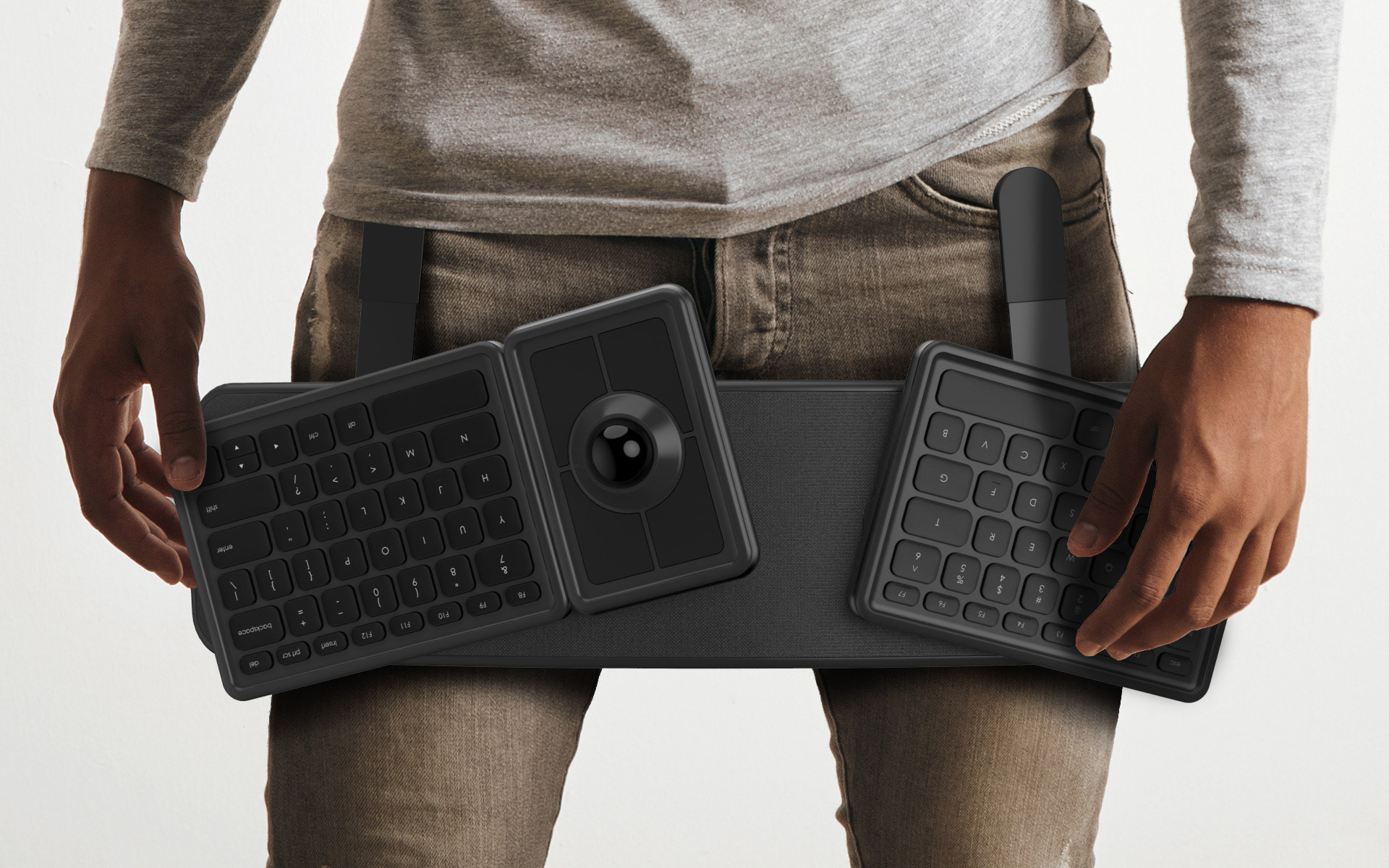

Understanding how the concept interacts with the user is the key; the below demonstrates how it fits the body.

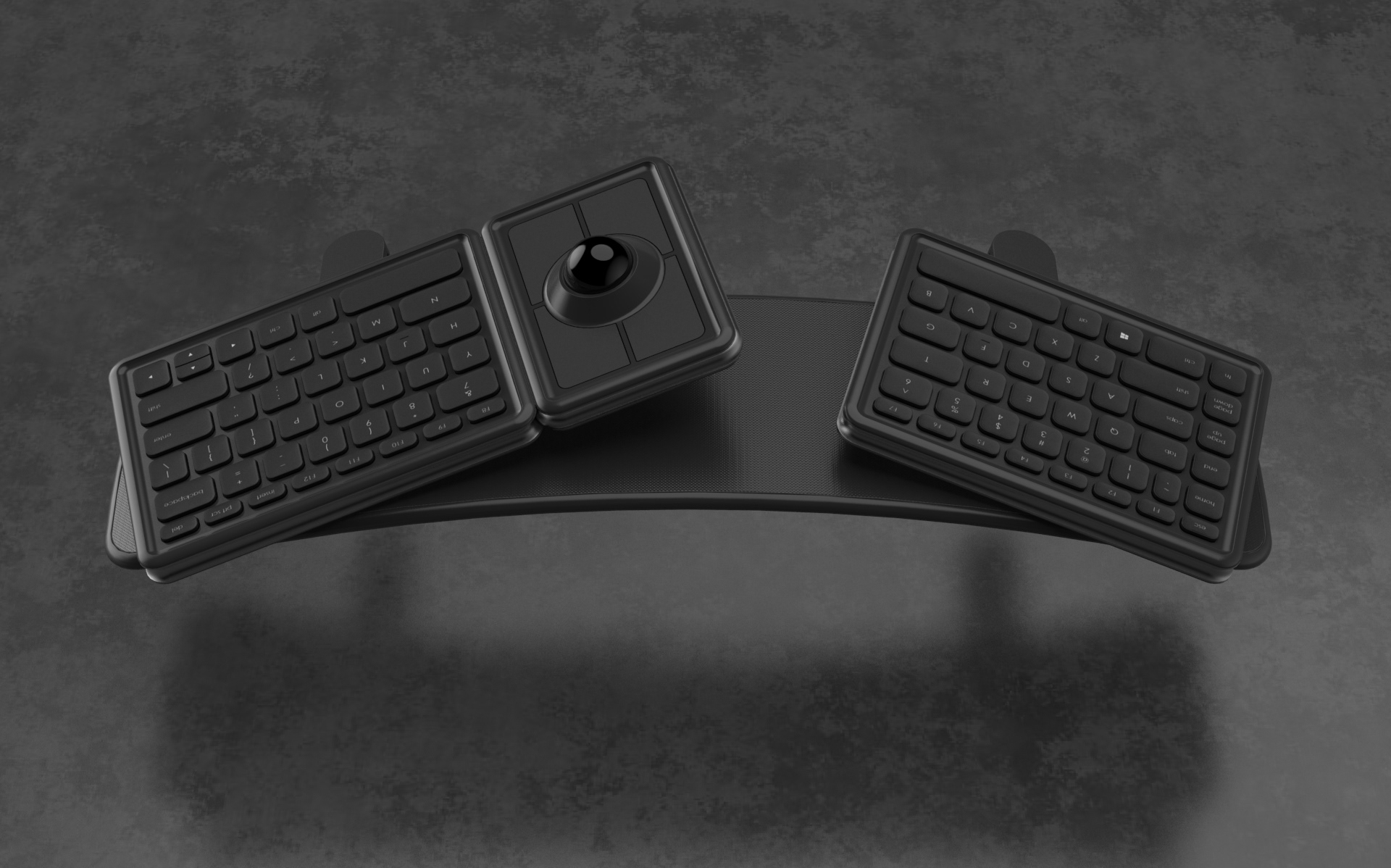

The keyboard, when hooked into the body flexes to fit the user. The keys lie close to the hands nominal resting position for improved ergonomics.
Smart hinge on the back hooks is providing rotation of the keyboard for 20 degree each side. Flexible “belt” to support any body shape and size.

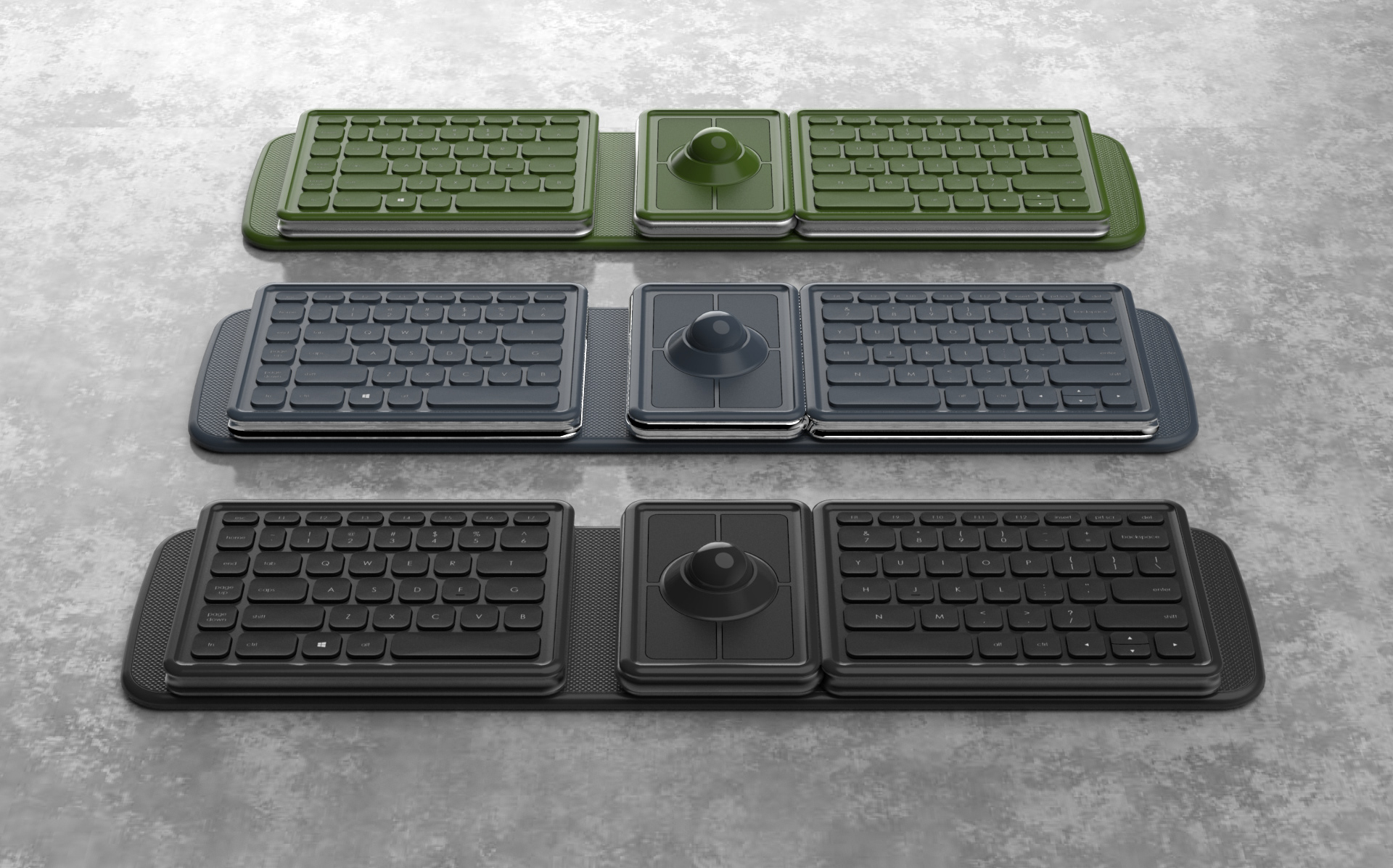

CAMO - military inspired finishes. The rubberised frames, matte buttons and metal looks like details

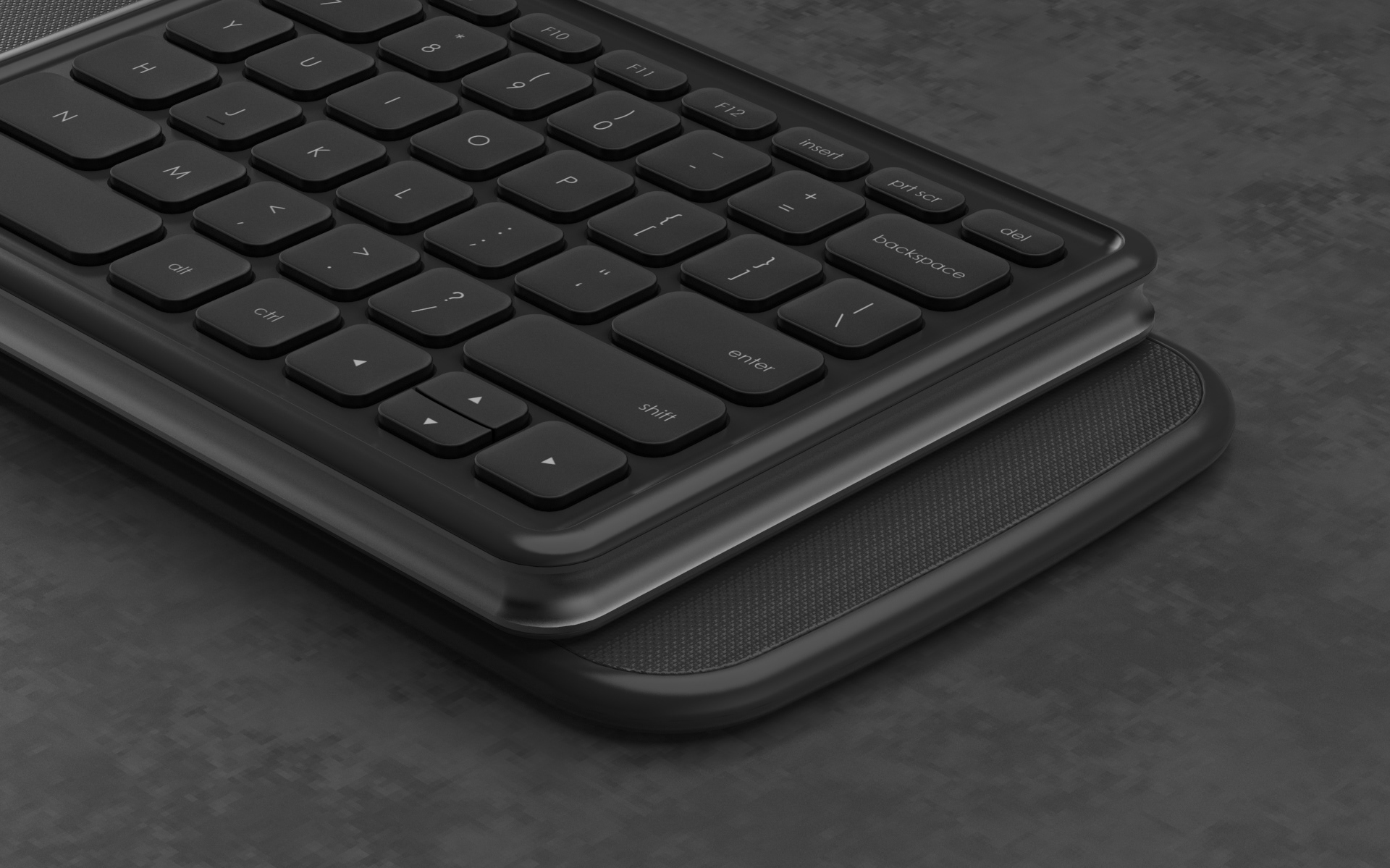

DEEP SPACE - most sophisticated monochrome solution with stainless steel look like keyboard frame. Rubberized keys are providing best tactic feel and grip.
BLACK MOON - will attract attention of the users with classic color preferences The new monochrome combination of shiny and matte plastics and anodized Black Moon aluminum will be a perfect choice for them

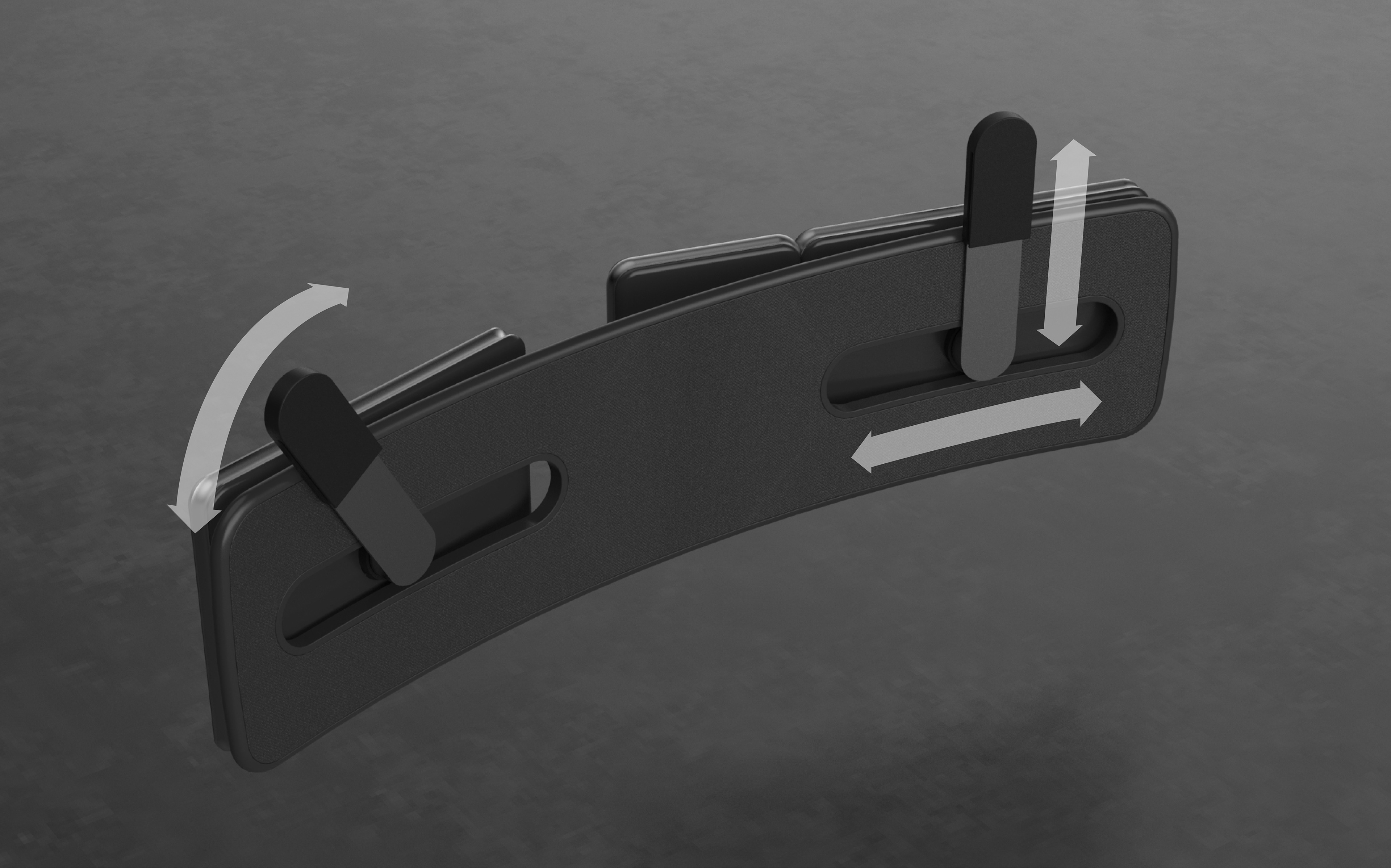

Designed to be an effective mounting solution, the clip is adjustable in the two axis necessary for completed positional control. Simple height and rotation adjustment allows for a wide range of ergonomic profiles in order to allow the user total control over their size preferences. The clip is also designed to seamlessly retract into a stored position when out of use allowing the keyboard to cleanly sit on any workspace environment.

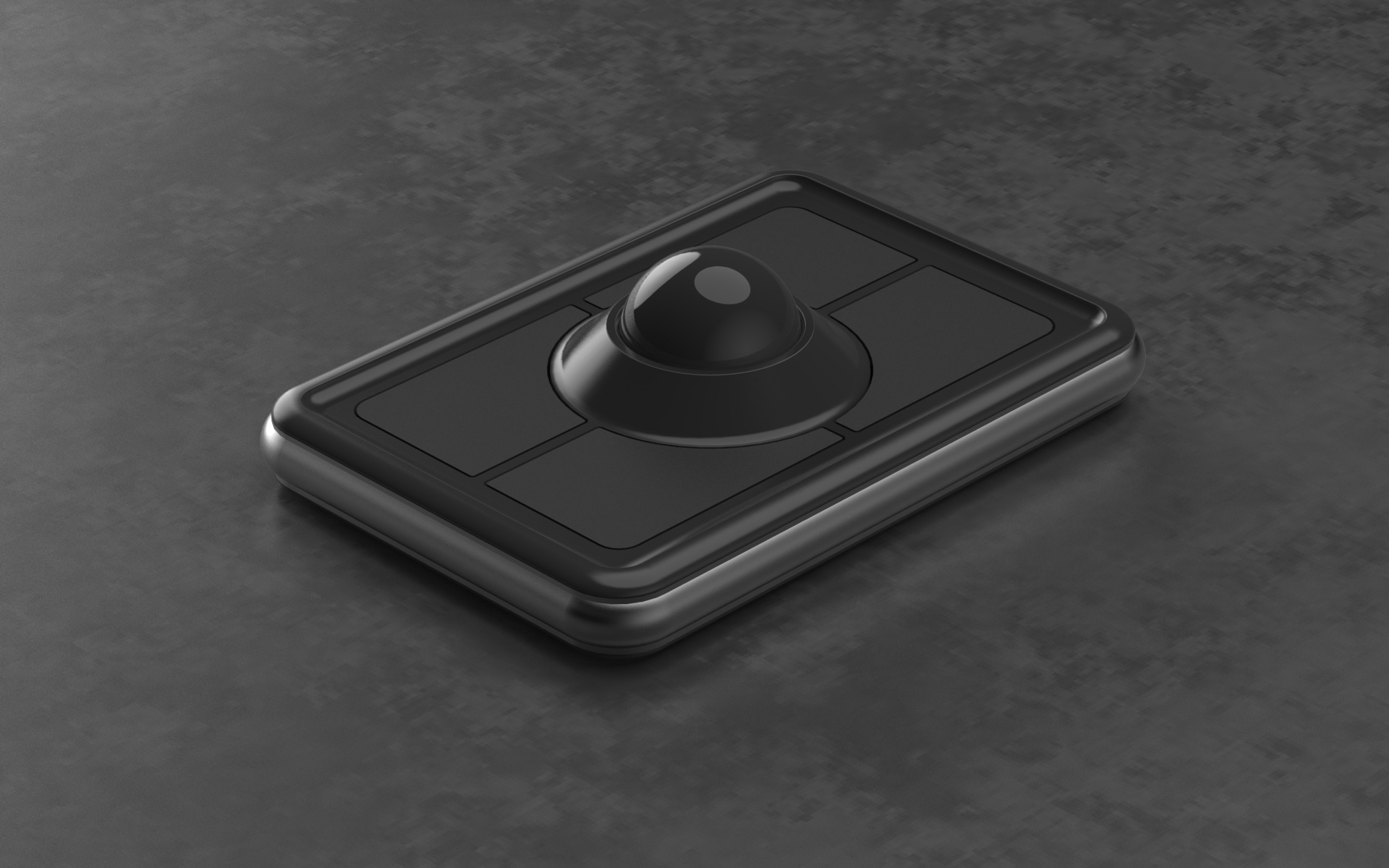

When it comes to connecting the trackball, a couple of options are available. It may be possible to connect the trackpad in a similar way to the iPad Keyboard - by making use of a magnetic snap system. It would allow quick, easy and intuitive attachment.
Considering the nature of both input options, they could be seamlessly integrated into the product or even made detachable. That provides added value to the user when using the keyboard on a desk. They could continue to use the pad as the primary input device. Alternatively, they could quickly switch to a mouse and incorporate the pad as a secondary controller option, to be used where they see fit.

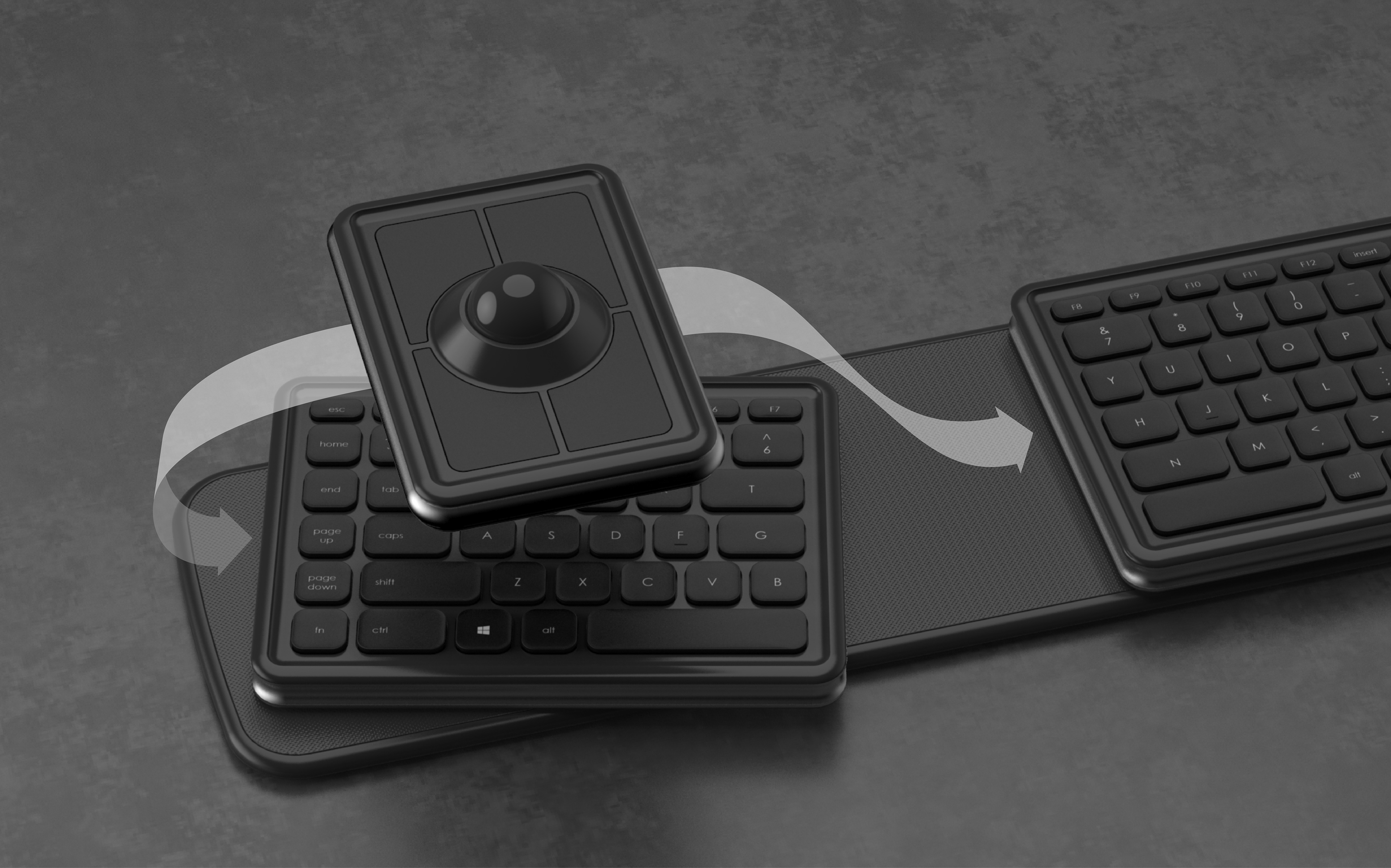

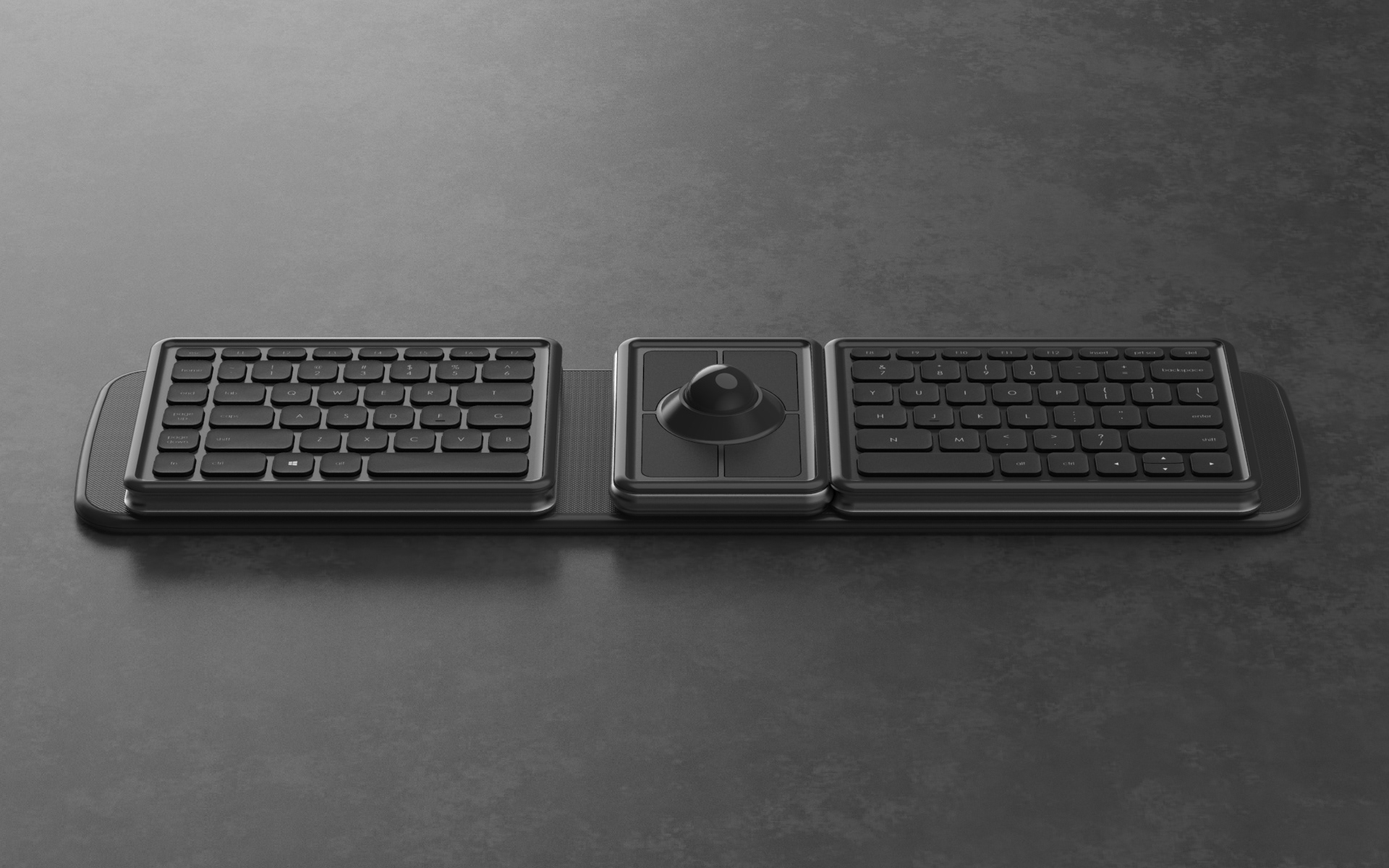

It was also crucial to consider a desktop use.  Adding an inbuilt trackpad or touchpad takes up more space than would be desired. The benefit of integrating a detachable trackball in the design below - the user can choose to work with the trackball as a primary or secondary mouse to suit their needs, positioning it out of the way if not required or close by to suit their preferences.
